Product Description

Thermostats

1. Product introduction of Thermostats

Thermostats are generally composed of two parts: temperature detection and temperature control. Most thermostats also have alarm and protection functions.

Thermostat, according to the temperature change of the working environment, physically deforms inside the switch, thus producing some special effects, producing a series of automatic control elements with on or off actions, or providing temperature data for the circuit according to different working principles of electronic components at different temperatures, so as to collect temperature data for the power supply circuit. The measured temperature is automatically sampled and monitored in real time by the temperature sensor. When the collected temperature is higher than the control set value, the control circuit is started, and the control back difference can be set. If the temperature is still rising, start the overrun alarm function when it reaches the set overrun alarm temperature point. When the controlled temperature can't be effectively controlled, in order to prevent the equipment from being destroyed, the equipment can be stopped to continue running through the function of tripping. It is mainly used in various power distribution cabinets used in various industries, household refrigerators, air conditioners and other related temperature use fields.

Mechanically, two layers of metals with different thermal expansion coefficients are pressed together. When the temperature changes, its bending degree will change. When it bends to a certain extent, the circuit will be connected (or disconnected) to make the refrigeration (or heating) equipment work.

Electronically, the temperature signal is converted into an electrical signal by temperature sensing devices such as thermocouples and platinum resistors, and the relay is controlled by circuits such as single chip microcomputer and PLC to make the heating (or cooling) equipment work (or stop).

Thermostats Manufacturers

Send Inquiry

For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

Product Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Related Products

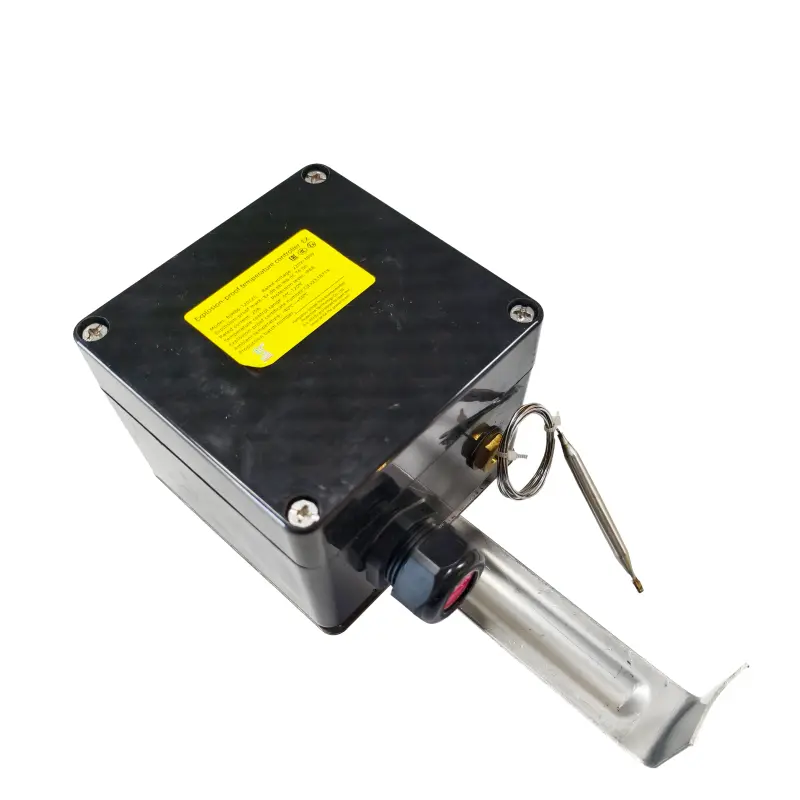

BJW86-120/25 Explosion-proof temperature controller

Explosion-proof temperature controller for electric heating cable The explosion-proof temperature controller is an important accessory of the electric heating system, used to control the temperature of the heating medium, and is used in conjunction with the FDH type general explosion-proof junction box Technical indicators: 1. Model: BJW86 2. Rated current: 25A 3. Temperature adjustment range: 0-120℃, 0-150℃, 0-200℃ 4. Temperature control accuracy: ±5℃ 5. On-off differential: ≤6℃ 6. Inner diameter of control cable sealing ring: ⊿14mm 7. Protection level: IP65 Product introduction: The explosion-proof temperature controller is an important accessory of the electric heating system, used to control the temperature of the heating medium, and is used in conjunction with the CH type general explosion-proof junction box. It is designed and manufactured according to the requirements of explosion-proof electrical appliances, and the explosion-proof mark is: “Exd e mb llCT4 Gb”;  its shell is DMC plastic with the characteristics of light weight, high mechanical strength and strong corrosion resistance.

Explosion-proof temperature controller

The explosion-proof temperature controller is used for the connection of the power line and the electric heating belt in the explosion-proof area. Usually fixed on the pipe. After being matched with electric heating belt and power junction box, it is suitable for use in the explosive gas mixture T4 group field in the first and second areas of the factory. The explosion-proof temperature controller can output in one direction, and its shell is made of DMC plastic.
