Electric heating belt solves the problem of pipeline freezing and blockage in winter

In low temperature weather during winter, various outdoor, overhead, and underground pipelines are prone to water accumulation and freezing, as well as pipeline blockage. In mild cases, the pipelines may become blocked and equipment may be shut down, while in severe cases, the pipelines may freeze and crack, causing water and material leakage. Electric heat tracing can actively supplement heat and solve various hidden changes caused by pipeline freezing and blockage in winter from the root.

Pipeline freezing and blockage in winter is the most common problem in the operation and maintenance of various industries. Water supply and drainage pipelines, fire protection pipelines, sewage pipelines, and chemical process pipelines are mostly located in ventilated, cold, and outdoor environments for a long time. During low temperatures, rain, snow, and frost at night, residual water in pipelines can easily freeze and accumulate, gradually blocking the pipelines and affecting the normal transportation and use of the entire system.

Relying solely on insulation to prevent freezing actually has significant shortcomings. Insulation materials can only lock in the original heat of the pipeline and cannot actively provide a heat source. After a long period of low temperature invasion, the temperature inside the pipe will continue to decrease, especially at the heat dissipation points such as valves, elbows, and pipe supports, which are likely to freeze first, forming local frozen dead corners.

Compared to traditional antifreeze methods, the antifreeze logic of electric heat tracing belts is more scientific. Unlike passive insulation, it can continuously and evenly replenish heat energy to the pipeline, offset the heat loss caused by low external temperatures, keep the temperature of the medium inside the pipeline above freezing point, avoid water accumulation and material solidification, and completely eliminate pipeline freezing and blockage problems.

Most ordinary civilian and municipal pipelines are equipped with self limiting temperature electric heating belts for antifreeze. This product is very intelligent and can automatically adjust the heating power according to changes in environmental temperature. The lower the temperature, the stronger the heating effect. After the temperature rises, the power consumption will automatically decrease without frequent manual regulation. It can stabilize anti freezing and not cause waste of electricity.

For industrial pipeline antifreeze, constant power and explosion-proof electric heat tracing belts can be selected according to the medium requirements. For special pipelines in chemical, oil and gas industries, it not only maintains constant temperature and antifreeze, but also has flame retardant, anti-corrosion, and explosion-proof characteristics, suitable for high-risk, humid, corrosive and other harsh environments, ensuring equipment operation safety while preventing freezing.

For weak areas where pipelines are prone to freezing and blockage, the adaptability of electric heat tracing belts is very flexible. Elbows, flanges, valves, tees, and other areas with fast heat dissipation are prone to freezing and blockage, and traditional insulation is difficult to achieve comprehensive protection. During construction, it is possible to appropriately densify and lay at these points to compensate for local heat shortages and eliminate anti freezing blind spots.

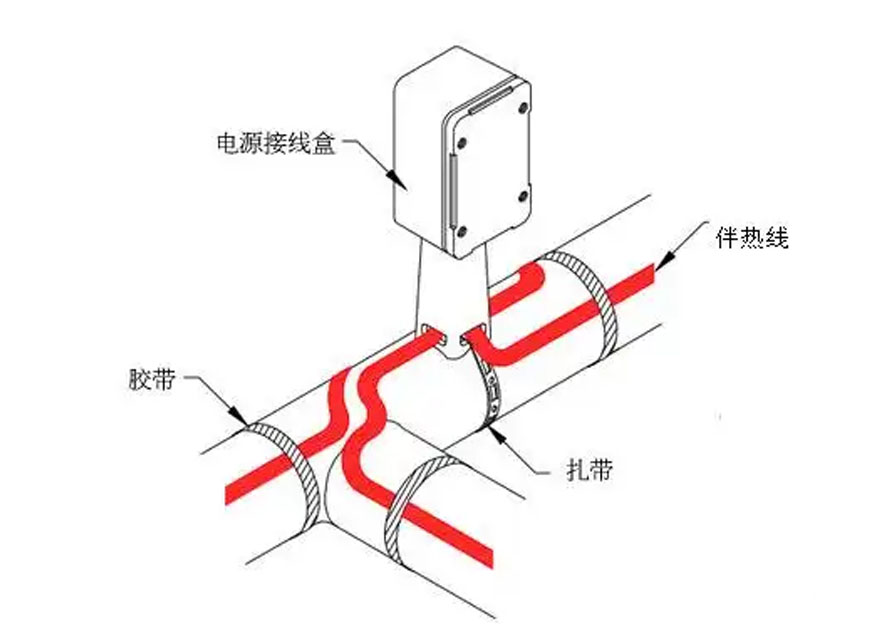

Standardized construction is the key to ensuring anti freezing effect. Clean the rust and burrs on the pipe wall before laying to avoid scratching the outer protective layer of the cable. Uniformly fixed with pressure-sensitive adhesive tape to ensure that the heat tracing strip is tightly attached to the pipe wall, flat and stretched, without distortion or overlap, and to prevent local heat accumulation or poor adhesion from affecting the thermal conductivity. After the construction is completed, promptly wrap the insulation layer to firmly lock in the heat.

Paired with temperature control equipment, it can further optimize the anti freezing effect and save energy consumption. The temperature control probe is installed tightly against the pipe wall, accurately sensing the temperature of the pipeline and achieving an automated operation mode of low-temperature start-up and high-temperature shutdown. Not only does it avoid long-term no-load operation and power consumption of equipment, but it also ensures that pipelines do not freeze or block around the clock.

Daily operation and maintenance are relatively simple and do not require complex operations. Before and after the season change, conduct a simple inspection of the appearance of the cables and the integrity of the insulation layer, retest the insulation status, and promptly address minor issues such as damage, water ingress, and looseness. By doing a good job in basic maintenance, it is possible to maintain stable frost resistance throughout the year, with few occurrences of freezing and blockage faults.

Overall, electric heat tracing completely fills the gap in traditional insulation for anti freezing, relying on active heating, intelligent temperature control, and strong adaptability to perfectly solve various winter pipeline freezing and blockage problems. Simple operation and maintenance, safe and energy-saving, are currently the most practical and reliable way to prevent freezing of pipelines in winter.
