Detailed explanation of the usage specifications for electric heating belts

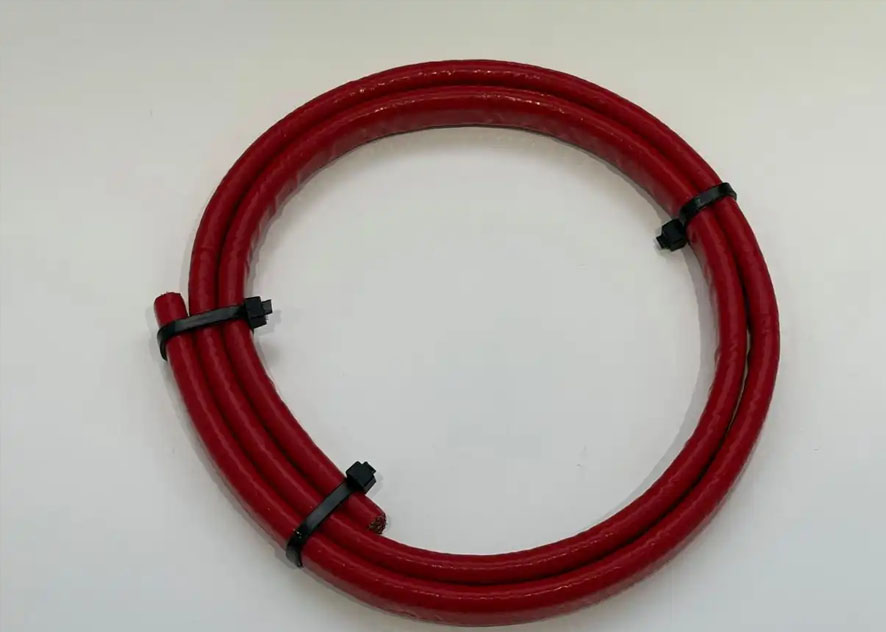

Electric heat tracing tape is widely used for anti freezing and insulation work of various pipelines and equipment, with a wide range of applications, stable heating, and simple operation and maintenance. However, the equipment has high requirements for operational standardization. Improper use and illegal construction are likely to cause problems such as abnormal heating and leakage tripping. Strictly adhering to usage standards is the foundation for ensuring the safe and stable operation of the system.

The initial selection criteria are the primary prerequisite for use. The models of heat tracing belts corresponding to different operating conditions are different and cannot be uniformly mixed. Ordinary civilian and indoor pipelines can use conventional self limiting temperature models to meet basic anti freezing requirements. Outdoor outdoor and damp water accumulation scenes require the use of reinforced waterproof protective sleeves. Chemical corrosion, flammable and explosive areas must use explosion-proof and anti-corrosion special models to avoid safety hazards caused by inconsistent models.

Power selection should also be tailored to the on-site environment. In extremely cold winter areas and large-diameter pipelines, low-power cables should not be used, otherwise the heating reserve will be insufficient, and insulation failure and pipeline freezing blockage may occur in low-temperature weather. As long as the selection matches, the equipment can achieve the desired heat tracing effect.

The specifications during the laying and installation phase directly determine the quality of later operation. During construction, the heat tracing belt needs to be flat and closely attached to the outer wall of the pipeline, kept flat and straight, without twisting, hanging or loosening. Priority should be given to using original pressure-sensitive adhesive tape for fixation, which should be evenly segmented. It is strictly prohibited to use iron wire or hard ties to tie and prevent the sheath from being punctured and the wire body from being damaged.

During construction, it is strictly prohibited to cross, overlap, or squeeze cables for laying. Excessive local heat accumulation can burn the insulation layer, causing short circuits and leakage faults. Valves, elbows, and flanges have fast heat dissipation, and can be appropriately encrypted and laid for additional heating, but cannot be stacked or wrapped. At the same time, control the bending radius of the cable, prevent dead bends and hard bends, and avoid damage and breakage of the internal core wire.

Electrical wiring operations must be strictly compliant. All wiring operations should be completed in a dry environment as much as possible. The wiring terminals should be compacted and tightly pressed to prevent exposed copper wires and loose connections. In explosion-proof working conditions and outdoor humid areas, it is necessary to use matching explosion-proof and waterproof accessories. The interfaces and wiring positions must be tightly sealed to prevent water vapor and dust from infiltrating and causing electrical faults.

The tail end of the heat tracing belt must be sealed with a dedicated head, and it is forbidden to expose it or let it get wet and water in. The temperature control probe should be installed on the wall in a standardized manner, avoiding the direct heating area of the heat tracing zone, ensuring accurate temperature measurement, and preventing temperature control disorder and abnormal start stop of the equipment. After the completion of the entire wiring, it is necessary to retest the insulation resistance and ensure that the value is qualified before proceeding to the next process.

There are also clear regulations for insulation and external protection construction. After confirming that the cable laying and wiring are correct, wrap the insulation layer. The insulation cotton is laid tightly without gaps, and the outer waterproof layer is completely sealed to prevent rainwater and moisture from infiltrating into the insulation layer, causing long-term moisture aging of the cables and reducing insulation performance.

Daily operation and use also require compliance with regulations. It is strictly prohibited to cut, lengthen, or modify the wiring without authorization, and to arbitrarily change the original structure of the equipment, which may easily disrupt the power balance of the system and increase the risk of faults. Do not frequently start and stop equipment, adjust temperature control parameters randomly, maintain a reasonable constant temperature range, which can effectively reduce equipment wear and extend service life.

Regular inspection and maintenance are also part of standardized use. Daily inspection of cable appearance, insulation layer status, and whether the junction box is damp or loose, with a focus on retesting insulation data before and after seasonal changes. Promptly repair minor damages, detachment, and other minor issues, without delaying or allowing them to escalate into major malfunctions.

Overall, the usage standards for electric heat tracing cables cover the entire process of selection, construction, wiring, insulation, and operation and maintenance. Strictly following standard procedures, not being lazy or violating rules, can basically avoid the vast majority of faults, ensuring the long-term safe, stable, and energy-saving operation of the heat tracing system.
