Products

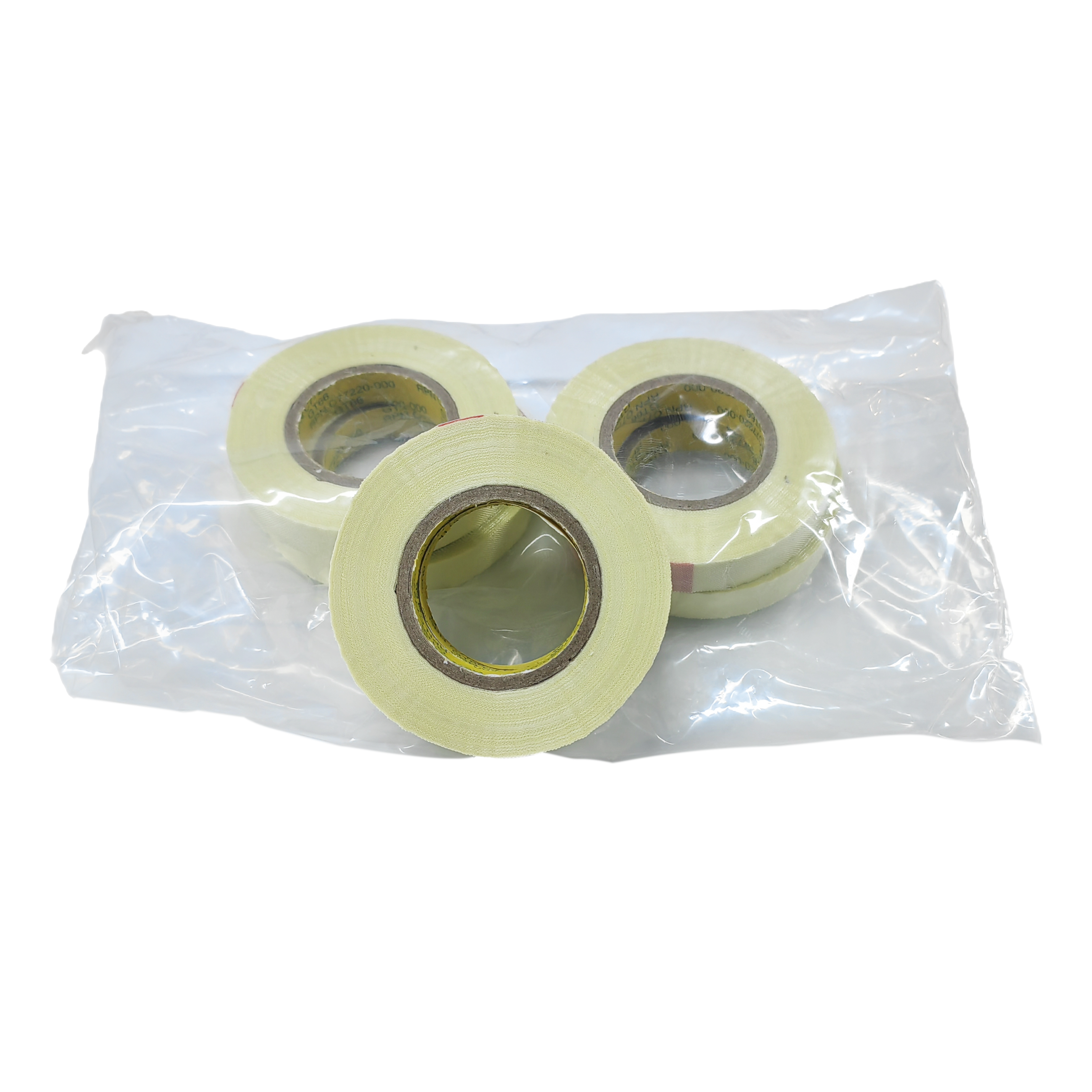

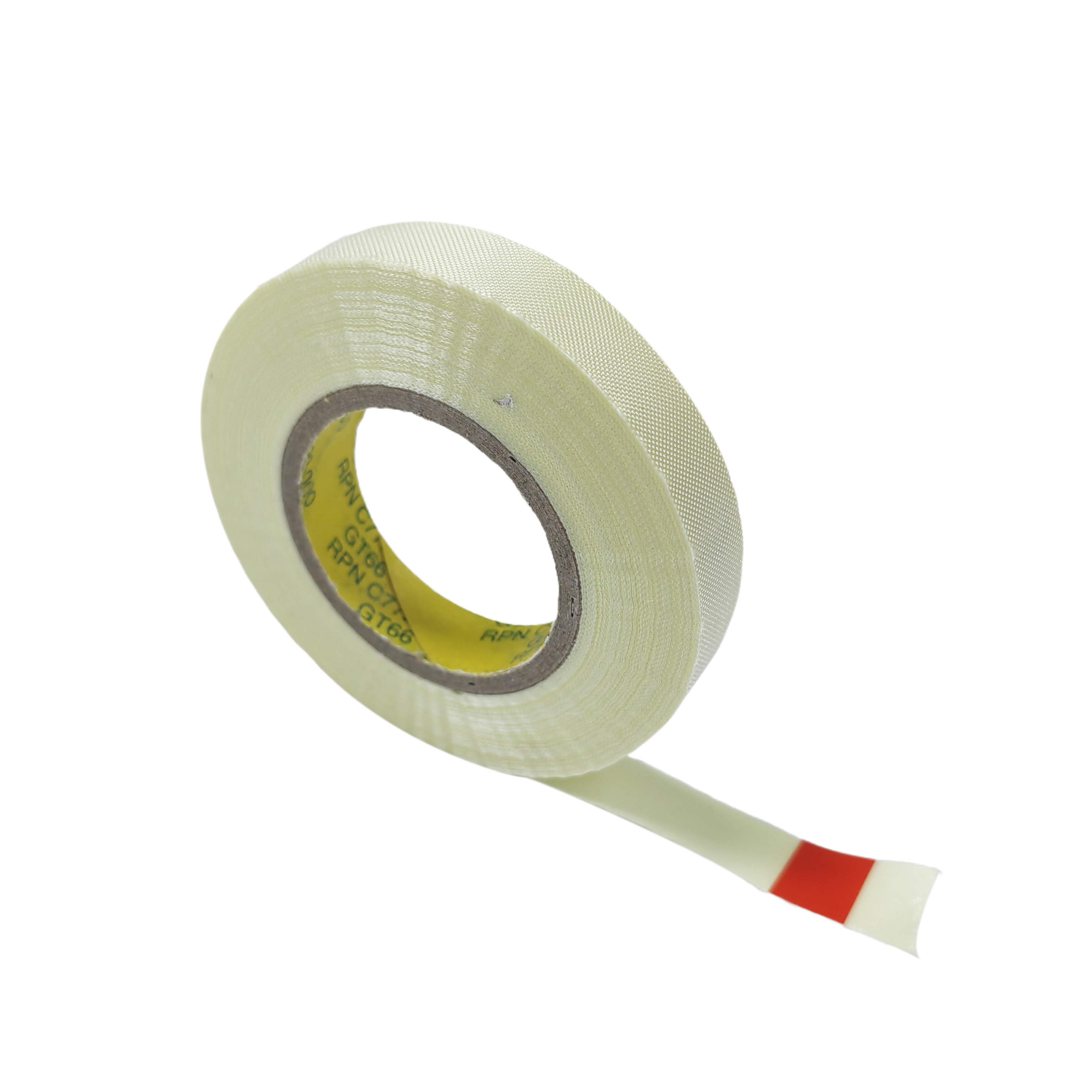

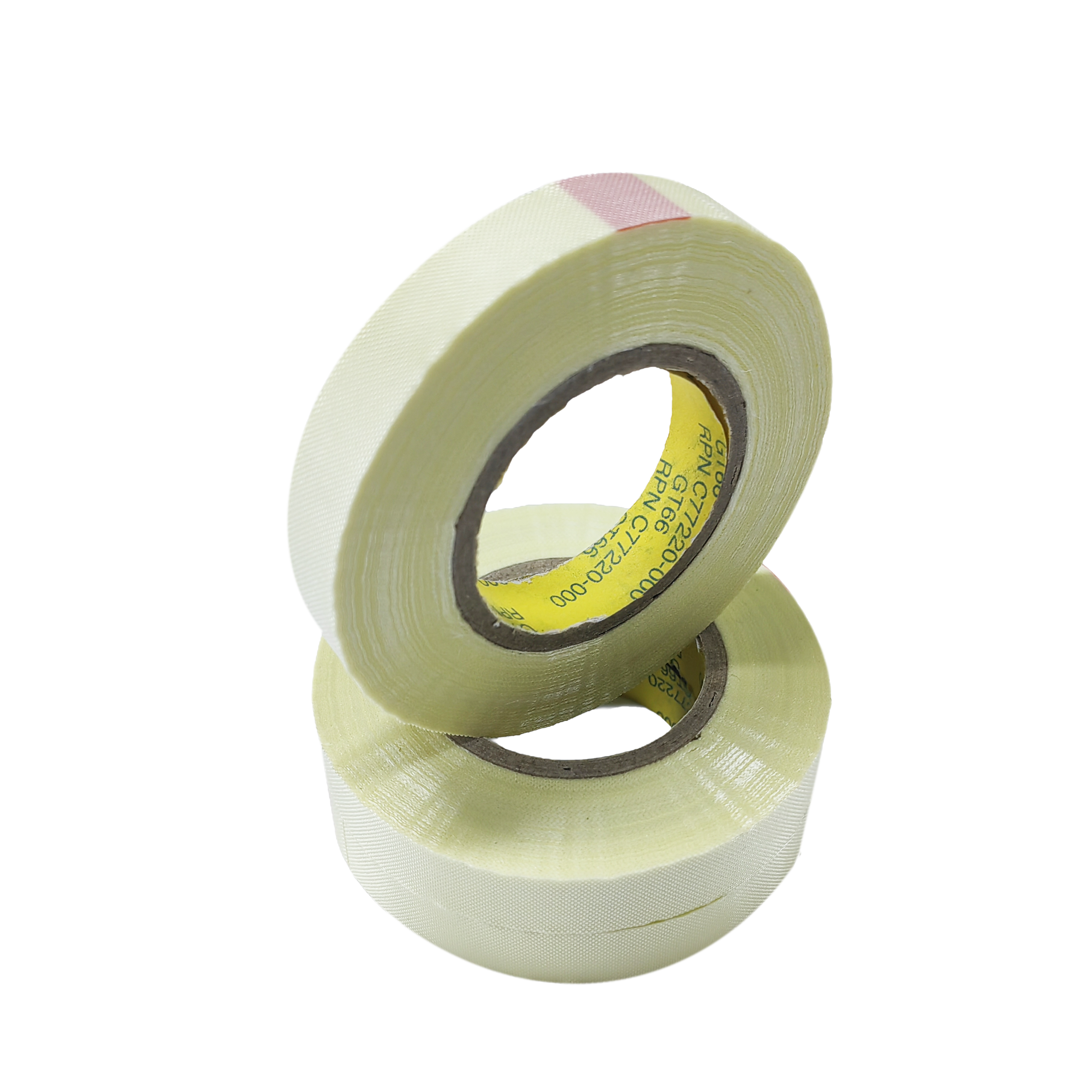

GT-66 Fiberglass Tape

Introduction/Description/Overview:

It is made of high-temperature resistant white PTFE fiberglass cloth and treated at high temperature. The product has the characteristics of good temperature resistance, strong adhesion, strong tear resistance, and melting resistance. It is used to tie the heating cable to the pipe. It is not used for stainless steel pipes or installations below 40°F (5℃).

Structural dimensions/outline dimensions:

Thickness 0.2mm, width 0.5 inches, length 20m

Applicable conditions/application areas/purposes and restrictions/usage conditions:

For stainless steel pipes, or installations below 40°F (5℃), maximum temperature resistance: 260℃.

Advantages/superiority:

The self-regulating heating cable automatically increases power as the ambient temperature decreases, and starts quickly. When the temperature rises, the power is reduced to avoid overheating, reduce operating costs, and the temperature is uniform. The self-regulating heating cable can be cut arbitrarily according to actual conditions, can be cross-overlapped, simple to install, and easy to maintain.

[email protected]

WhatsApp:17816879390

Send Inquiry

Product Description

Introduction/Description/Overview:

Structural dimensions/outline dimensions:

Thickness 0.2mm, width 0.5 inches, length 20m

Applicable conditions/application areas/purposes and restrictions/usage conditions:

For stainless steel pipes, or installations below 40°F (5℃), maximum temperature resistance: 260℃.

Advantages/superiority:

Send Inquiry

For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours.

Product Categories

how can we help you

You can contact us any way that is convenient for you. We are available 24/7 via email or telephone.

New Products

Related Products

End termination kit with LED signal lamp

JHE-L-GET End termination kit with LED signal lamp for industrial trace heating applications. Features The JHE-L-GET is an end termination kit with LED signal lamp. It is designed and manufactured to meet all relevant standards for industrial trace heating cable system in hazardous locations such as petrochemical plant, gas plant, ship and off-shore facilities. It consists of an Ex certified plastic termination enclosure and all necessary parts together with Ex d signal lamp assembly. It has a specially 'flip cover locks' technology for easy and time-saving connection with  self-regulating heating cables on various sites.

Direct Current Transformer

Self-limited temperature heating floor heating system is an innovative research and development of PTC technology and multi-layer solid wood composite flooring technology, which is developed in combination with the needs of high-end customized customers in the domestic electric heating market.

PT100 sensor

Due to the relationship between the temperature and the resistance value of PT100 thermal resistance, people use this characteristic to invent and produce PT100 thermal resistance temperature sensor. It is an intelligent sensor integrating temperature and humidity collection. The temperature collection range can be from -200°C to +850°C, and the humidity collection range is from 0% to 100%.

Stainless steel fixing card HYB-GK

HYB-GK steel clip is composed of stainless steel band and adjusting screw or lock clip, which is used to fix accessories such as explosion-proof power junction box on the pipeline. The steel strip can be cut according to 1.1 times the actual fixed length of the pipe diameter.

Silica gel

HZ703 performance and use: aging resistance, acid and alkali resistance, high and low temperature resistance (-60 ℃ ~ 250 ℃). No corrosion, good insulation, waterproof, shockproof performance, especially for the insulation potting of electric heating appliances.

Power distribution control box

HY-DBKX control box is a standard or non-standard distribution box for electric heating cable heating.

Foil tape

HYB-LB45 aluminum foil tape is coated with a layer of special adhesive on the aluminum foil tape. In the electric heating system, when the electric heating cable is installed, it is used to fix the electric heating cable along the direction of the electric heating cable and fully contact the heating object. Tracing heat and eliminating static electricity. The temperature sensing package of the thermostat is fixed for easy installation. Its main function is to fix the heating cable, increase the heat dissipation surface of the heating cable, and improve heat conduction. The bandwidth is 50mm, and each roll is 45m. The amount of aluminum foil tape used is 1.2 times of the designed electric heat tracing quantity.

Pressure Sensitive Tape

HYB-YM30 heat-resistant pressure-sensitive adhesive tape, also known as fixed tape, is coated with a layer of special adhesive and aluminum film on the basis of glass fiber tape. The bandwidth is 20mm, and each roll is 30m. In the electric heating system, When the electric heating cable is installed, it is used to fix the electric heating cable along the radial direction of the pipeline. The equipped length depends on the outer diameter and length of the heating pipeline. The distance depends on the diameter of the pipeline, generally 0.5 ~ 0.8m. The amount of pressure-sensitive tape is generally taken as the circumference of the pipeline × the length of the pipeline × 8 (combined coefficient)
