Key points for installing electric heat tracing bands for antifreezing of roof water tanks

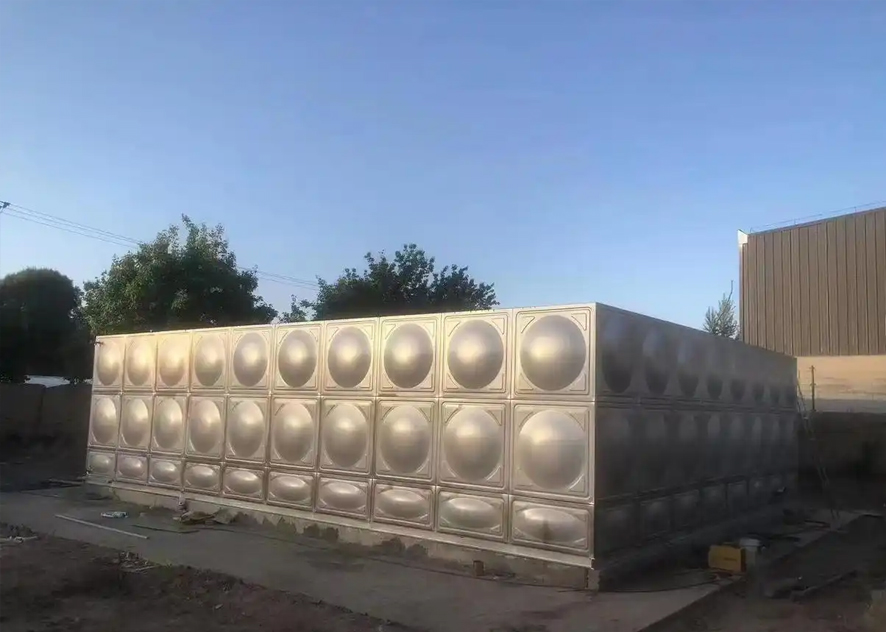

The roof water tank, exposed to the elements for extended periods, is prone to freezing and cracking in low temperatures during winter, leading to disruptions in water supply and equipment damage. Electric heat tracing bands serve as an efficient solution for preventing freeze damage to roof water tanks. However, given the windy, humid, and temperature-varying environment on the roof, it is crucial to pay attention to key installation points to ensure effective freeze protection and maintain stable water supply.

Precise selection: adapting to the complex environment on the rooftop

The core of model selection is to withstand harsh working conditions on the roof: priority is given to self-regulating electric heat tracing bands, with automatic temperature control at 5-10℃, to avoid local overheating or freeze-blocking of the water tank and accommodate long-term power-on requirements; models with a waterproof rating of IP67 or above are selected to resist erosion from rain, snow, and dew, preventing short circuits; water tank pipelines (inlet and outlet pipes, drain pipes) are chosen with a power of 15-20W/m, and high-power models with 20-25W/m are selected for the joints between the inner liner and outer wall of the water tank to enhance anti-freezing effects; outdoor installations require UV-resistant and weather-resistant sheaths to prevent aging from wind and sun exposure.

Standardized laying: Precise installation by zones

Lay the pipes in zones according to the structure of the water tank to ensure there are no anti-freezing blind spots: The inlet and outlet pipes of the water tank are laid parallel along the bottom of the pipeline, fixed with high-temperature resistant waterproof tape every 15-20cm, and tightly fitted to the pipe wall; for elbows, valves, joints, and other parts prone to heat dissipation, the wrapping is densified by 2-3 turns, and the wrapping spacing is shortened to 10cm; the bottom and side walls of the inner liner of the water tank are fitted and laid, wrapped in an "S" shape, covering comprehensively to avoid local freezing; the drainage pipe and overflow pipe are laid throughout the entire length, with the ends extended by 5-10cm to prevent the pipe orifice from being frozen and blocked.

Protective reinforcement: Resist wind damage and moisture on the roof

Strengthen protection against the strong winds and humidity on the roof: After cutting the heat tracing cable, immediately seal the ends with waterproof heat-shrinkable caps to prevent exposure of the core; use explosion-proof and waterproof junction boxes at the joints, fill them with sealing compound, tighten the bolts, and add rain and sun protection covers to prevent rain and snow from infiltrating; when the lines pass through water tank supports and walls, cover them with flame-retardant protective sleeves to prevent friction damage; organize and secure outdoor lines to avoid loosening of joints caused by wind blowing and pulling.

Supporting insulation: locks in heat and prevents it from escaping

After installation, insulation measures must be taken simultaneously: the outer wall of the water tank and the outer layer of the heat tracing belt should be wrapped with 50-80mm thick flame-retardant polyurethane insulation cotton, and the joints should be sealed tightly with sealing tape; the thickness of the pipeline insulation layer should not be less than 50mm, and the outer layer of outdoor pipelines should be coated with aluminum foil reflective film to enhance insulation and UV resistance; the top and bottom of the water tank should be specially thickened for insulation, and irregular parts such as valves and connectors should be wrapped with insulation cotton after being cut to prevent heat loss.

Safety and debugging: building a solid defense line for use

After installation, conduct safety inspection and debugging: Set up a separate heat tracing circuit, install a leakage protector (action current ≤30mA) and an air switch to ensure electrical safety; power on to test whether the heat tracing belt heats up evenly, whether the thermostat is sensitive, and confirm that the temperature is stable at the anti-freezing threshold; check the insulation resistance (≥50MΩ) to avoid leakage risks; conduct another inspection before winter arrives, clear the snow and debris around the water tank to ensure the system operates normally.

The core of installing electric heat tracing bands for roof water tanks lies in "proper selection and adaptation, standardized laying, adequate protection, and meeting insulation standards". Following these key points can not only effectively withstand low temperatures in winter, preventing tank freeze-cracking and pipeline freeze-blocking, but also ensure the safe and stable operation of the heat tracing system, protecting water supply from the harsh cold in winter.
