Details of electric heat tracing band selection for pharmaceutical applications

In the pharmaceutical industry, a field demanding the utmost in cleanliness, safety, and precision, the decision-making process for selecting an electric heat tracing system is far more than just simple pipeline insulation. It pertains to the stability of drug synthesis reactions, the safety of intermediate storage and transportation, and, more importantly, the consistency of quality among batches of final products. From the jacketed pipelines of boiling reactors to the material pipelines for low-temperature storage, the "details" of selecting an electric heat tracing system are essentially weaving a visible, controllable, and reliable physical protective net for the invisible pharmaceutical process.

The starting point of selection logic lies in the precise analysis of process temperature and the strict "over-matching" of temperature resistance levels. The pharmaceutical process involves a wide range of temperatures, from antifreezing in low-temperature biologics warehouses, to hot water or heat medium circulation systems that need to maintain around 60°C, to high-temperature condensate pipelines generated by certain synthetic reactions. The primary detail in selection is to determine the temperature resistance level and heating temperature level of the electric heat tracing band based on the principles outlined in "Selection Method for Electric Heat Tracing Bands", according to the pipeline maintenance temperature and the highest accidental operating temperature. A key detail is that the "maximum maintenance temperature" and "maximum withstand temperature" of the selected heat tracing band must be significantly higher than the process requirements. When considering potential future process upgrades or local overheating risks, one may even choose a superior ultra-high temperature self-regulating heat tracing band with a maximum maintenance temperature of up to 210°C. This "high-standard matching" serves as the first line of defense to ensure long-term stable operation and withstand unexpected operating conditions.

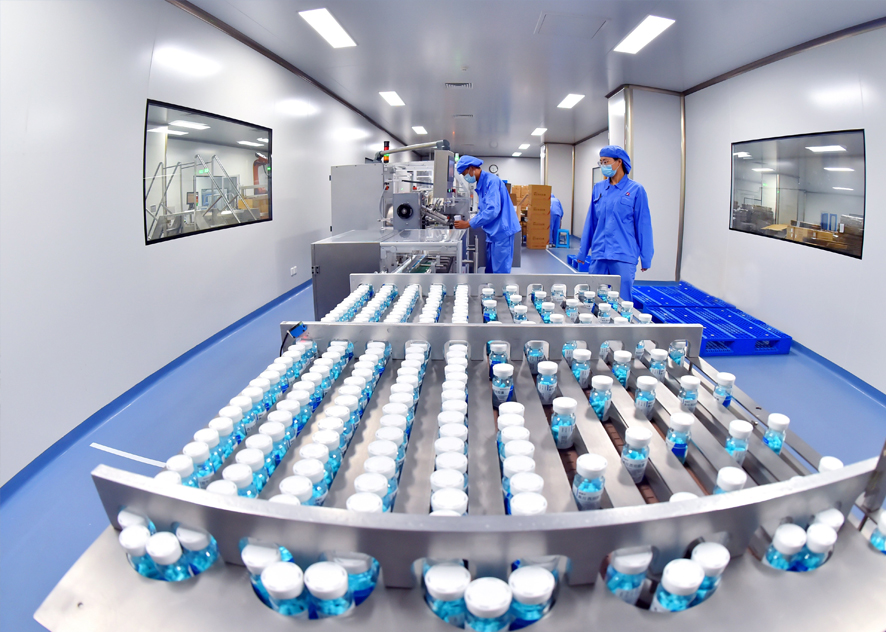

The refinement of details is reflected in the ultimate response to the particularities of the pharmaceutical environment (cleanliness and explosion-proof). The pharmaceutical workshop is a typical complex environment. Firstly, the clean zone requires equipment with smooth surfaces, no dead spaces, corrosion resistance, and ease of cleaning. Therefore, the material of the outer sheath of the heat tracing belt becomes a key selection factor. It must be made of food-grade or high-performance fluoropolymer materials that are low in leachables and resistant to frequent wiping with disinfectants, ensuring that it does not become a source of contamination. Secondly, many active pharmaceutical ingredient production areas contain flammable and explosive solvent gases or dust, which requires the electric heat tracing system to have intrinsic safety and explosion-proof characteristics. When selecting, it is necessary to choose heat tracing belts and all accessories (junction boxes, thermostats) with corresponding "explosion-proof" certification according to the zoning of explosion hazardous areas. The presence of a shielding layer is not only for grounding safety but also an indispensable safety component in an explosion-proof environment. It must be reliably grounded, and the grounding resistance is usually required to be no greater than 4Ω.

The final details are determined by the "millimeter-level" considerations of installation adaptability and control accuracy. Pharmaceutical equipment pipelines are dense, with numerous irregular components such as valves, flanges, and reaction kettle jackets. For these parts, if the self-regulating electric heat tracing band (PTC type) that allows arbitrary cutting and cross-overlapping laying is chosen, the installation will be extremely flexible, as it can automatically adjust its output power according to temperature changes. However, for core process pipelines that require precise maintenance of a certain constant temperature, such as the circulating water pipeline of a fermentation tank, a constant power electric heat tracing band combined with a high-precision temperature controller is a better choice. When selecting the type, it is necessary to calculate the heat dissipation of the pipeline to ensure that the unit power of the heat tracing band is sufficient to compensate for heat loss. In addition, a commonly overlooked detail is the "starting current" and "maximum usage length". For long-distance pipelines, the single-loop length of a series-connected constant power heat tracing band can reach hundreds of meters, but its length must be customized and cutting is strictly prohibited; whereas the self-regulating heat tracing band has a maximum usage length limit (usually about 100 meters), beyond which multiple independent loops must be designed, otherwise the end will suffer from insufficient power due to voltage attenuation. In terms of control scheme, even though the self-regulating heat tracing band has self-adjustment function, it is strongly recommended to install an independent explosion-proof temperature controller for key loops in the pharmaceutical industry to achieve dual protection and precise remote monitoring. When installing and fixing, using aluminum foil tape to increase the heat transfer area and using special pressure-sensitive tape instead of metal wires for binding are subtle specifications that are practical wisdom to ensure uniform thermal efficiency and avoid local overheating.

Therefore, the process of selecting and distributing electric heat tracing systems for the pharmaceutical industry is a comprehensive practice that integrates thermal engineering, materials science, explosion-proof safety, and GMP (Good Manufacturing Practice) management. It requires engineers not only to calculate heat, but also to understand the risks of the process; not only to select products, but also to build a reliable system that is impeccable from the heating core to the sheath material and control signals. When this seemingly ordinary cable is laid along the pharmaceutical production process, it carries not only electrical energy, but also a commitment to the long-lasting, pure, and precise protection of the pharmaceutical lifeline.
