Prefabricated insulated composite instrument bundle

Prefabricated insulated composite instrument bundle
Suitable for the transportation of hot and cold liquids and gases.

Technical indicators:
1. Product specifications: 38mm-70mm
2. Minimum radius of curvature: 6 times the diameter
3. Maximum continuous length: customizable
4. Minimum fixed distance: 5m in the vertical direction, 2m in the horizontal direction

Product application:

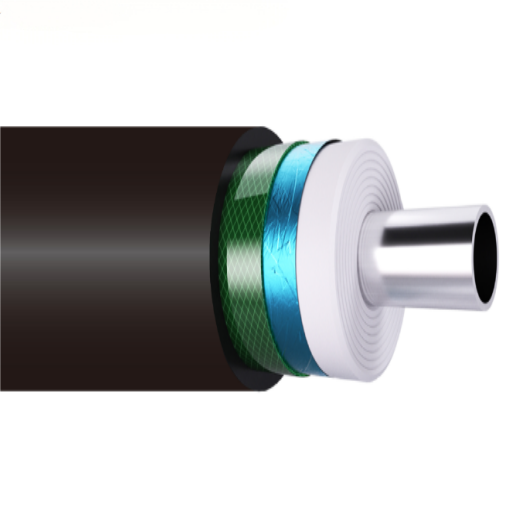

Prefabricated insulated composite instrument bundles are simple insulated and insulated instrument bundles, which are more suitable for the transportation of hot and cold liquids and gases. Since power or steam cannot be obtained during the entire transportation process, this method can maximize the temperature level of the object of insulated pipe transportation. Prefabricated insulated composite instrument bundles use sampling tubes made of customized materials, with non-hygroscopic glass fiber and heat-reflective aluminum foil wrapping, and the outer sheath is made of PVC or TPU. Because this composite instrument bundle has a simple structure and does not have some limitations of electric or steam heating pipes, it can be quickly and conveniently applied to existing bridges, cable trenches, channels, etc., together with related terminal sealing accessories, providing a relatively low installation cost.
