MI mineral insulated electric heating composite pipe bundle
MI mineral insulated electric heating composite pipe bundle

MI mineral insulated electric heating composite pipe bundle

MI mineral insulated electric heating composite pipe bundle
Suitable for antifreeze protection or temperature maintenance of process instrument pipelines under ultra-high exposure temperature conditions.

[email protected]
WhatsApp:17816879390
Send Inquiry

MI mineral insulated electric heating composite pipe bundle

MI mineral insulated electric heating composite pipe bundle
Suitable for antifreeze protection or temperature maintenance of process instrument pipelines under ultra-high exposure temperature conditions.

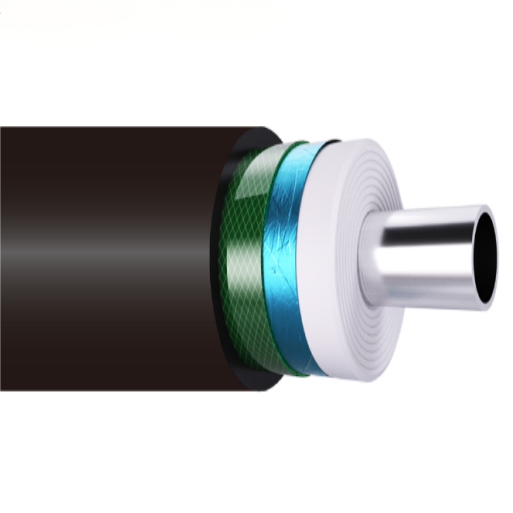

Product structure

1 Process pipeline
2 Mineral insulated electric heating cable
3 Heat reflective layer
4 High temperature explosion-proof glass wool insulation layer
5 Polymer jacket

Electric heating accessories
Zhejiang Qingqichen manufactures various types of heating products and sells them all over the world. The power connection and termination kits of the relevant heating cables and the controllers are suitable for electric heating instrument bundles. Please consult the relevant designers for details.
Working voltage: rated value (customizable according to customers)
Available power density: 10-200W/m
Sampling tube temperature range: 5℃-450℃
Maximum continuous exposure temperature (power off): 600℃

Technical indicators:
1. Product specifications: 38mm-70mm
2. Minimum curvature radius: 6 times the diameter
3. Maximum continuous length: customizable
4. Minimum fixed distance: 5m in vertical direction, 2m in horizontal direction
5. Temperature range: 5℃-450℃

Product application:
The MI type composite pipe bundle of the double-core mineral insulated heating cable is a composite pipe bundle with a prefabricated electric heating circuit, which is suitable for antifreeze protection or temperature maintenance of process instrument pipelines under ultra-high exposure temperature conditions (5℃-450℃)
The double-core mineral insulated heating cable can withstand an exposure temperature of 600℃, and the double-core design can achieve single-point power supply without the need to wrap back like a single-core heating cable, which optimizes the heating design.
The double-core mineral insulated heating cable has two different outer sheath material wire types: stainless steel and 825 alloy, which can meet different temperature levels and requirements.

MI mineral insulated electric heating composite pipe bundle
