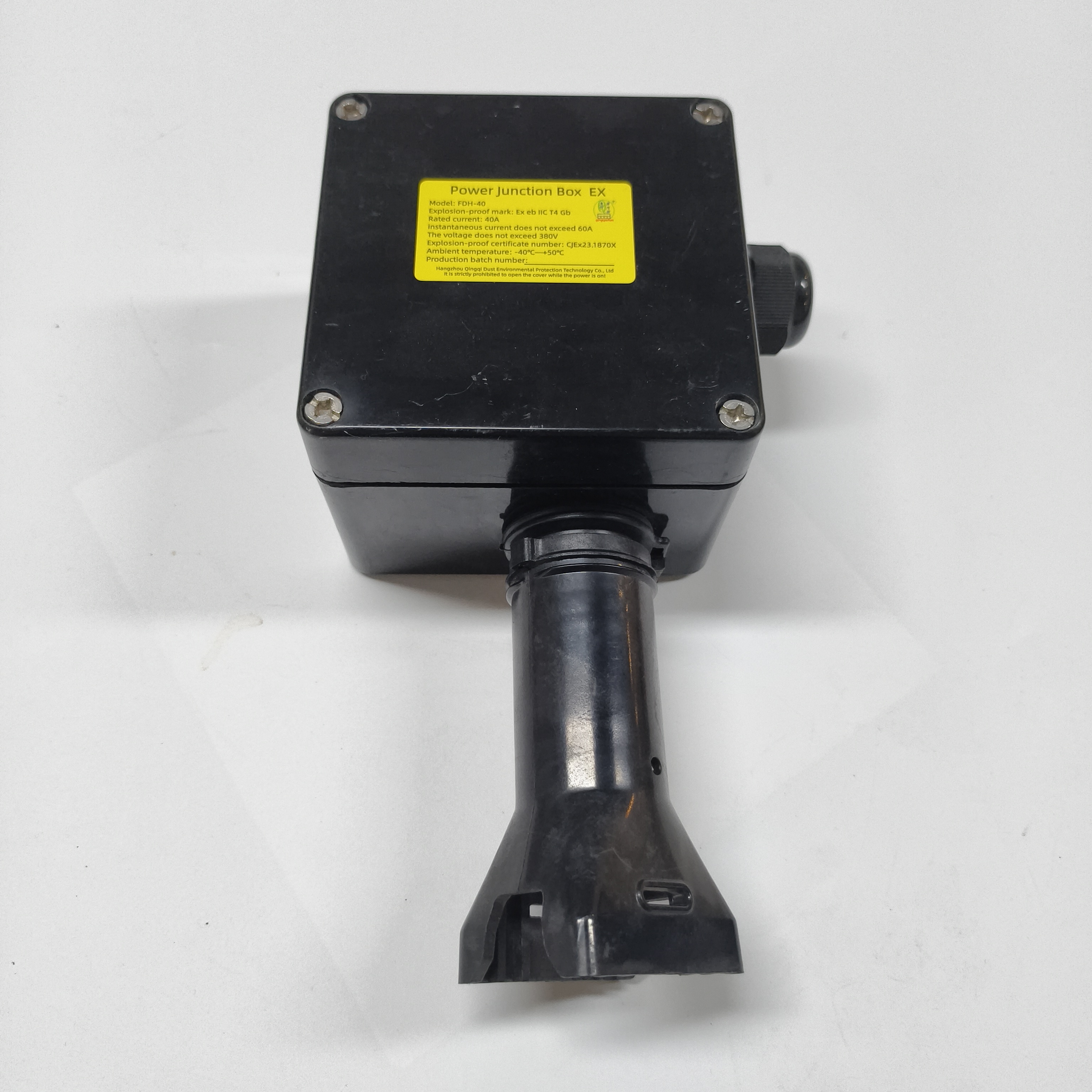

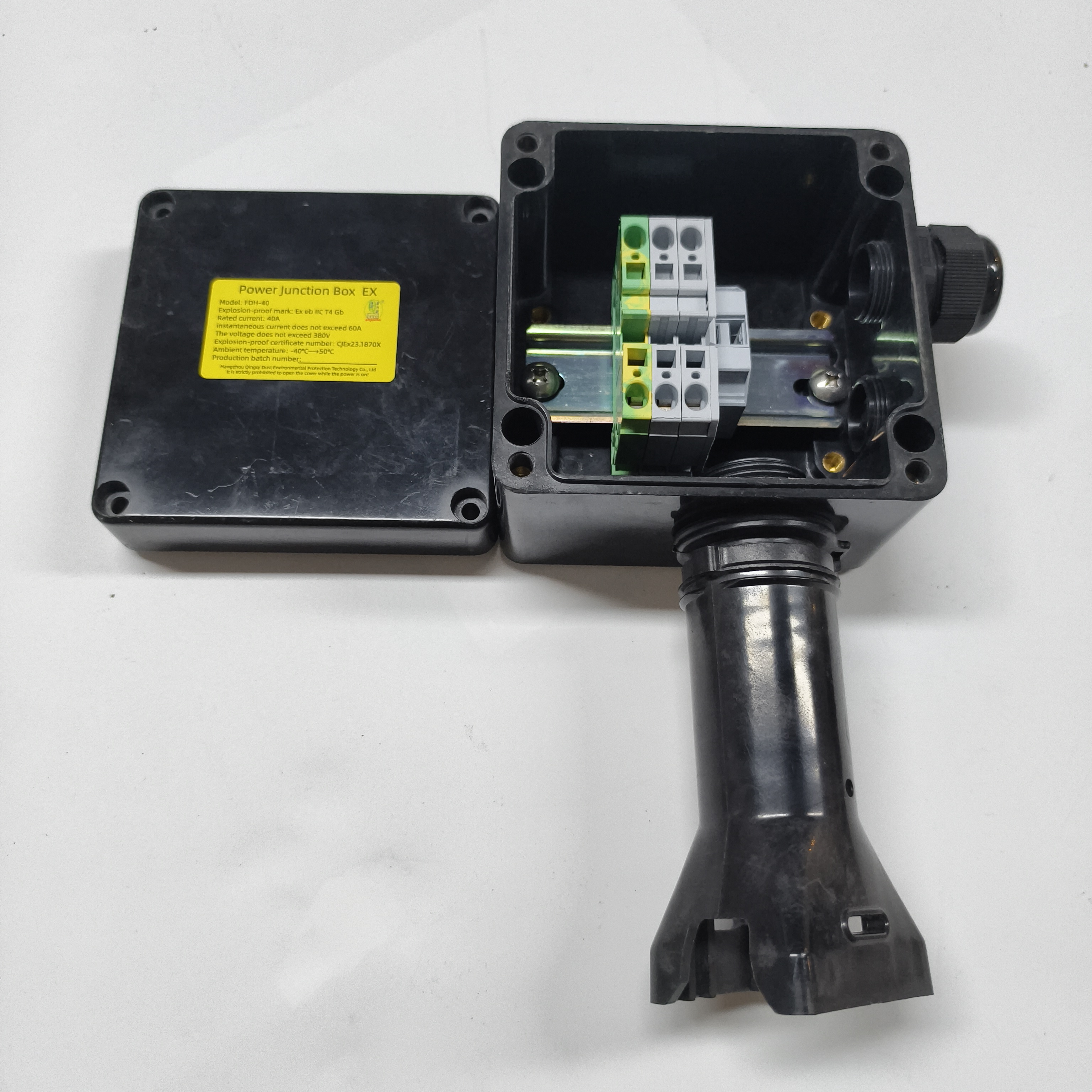

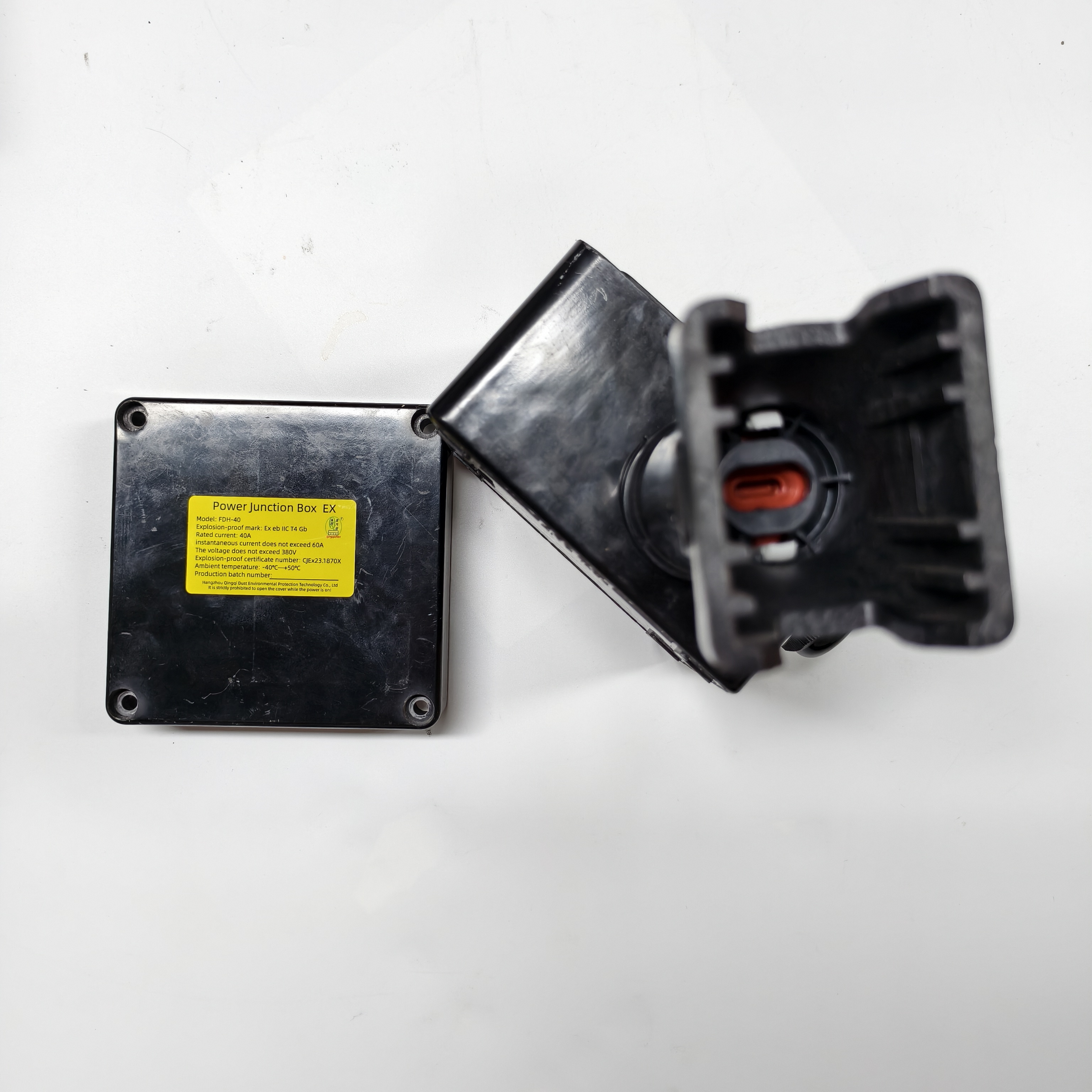

Power Junction Box -E

The FDH-40-E kit is designed to connect power to three domestic and imported industrial parallel heating cables for use in hazardous areas. It also has the function of connecting the kit and the insulation layer. The rugged bracket protects the heating cable and can be used with 100mm insulation. No heat gun or blowtorch is required to install the core sealing sleeve (no hot work permit required). The non-curing sealant in the sealing sleeve (no silicone) makes installation and maintenance very simple. Product Specifications: Applicable electric heating cables: domestic brand heating cables, imported series heating cables. Protection grade: IP66, Installation temperature: -50ºC, Working voltage: 277Vac, Working current: 40A, Optional LED indicator: red/green (working voltage: 100~277Vac, power <1W), Product model: Without indicator light: FDH-40-A, FDH-40-E, FDH-40-EP, With LED indicator light: FDH-40-L-A, FDH-40-L-E, FDH-40-L-EP, Qingqichen Electric Heating----As a leader in the field of electric heating, please contact Qingqichen Company for specific design, selection and engineering services of electric heating systems.

 Applicable conditions/application fields/purposes and restrictions/usage conditions

Application area: hazardous areas

Advantages/superiority

FDH-40-E has both the function of connecting the kit and the insulation layer inlet. The sturdy and durable bracket can protect the heating cable and can be used for 100MM insulation layer.
