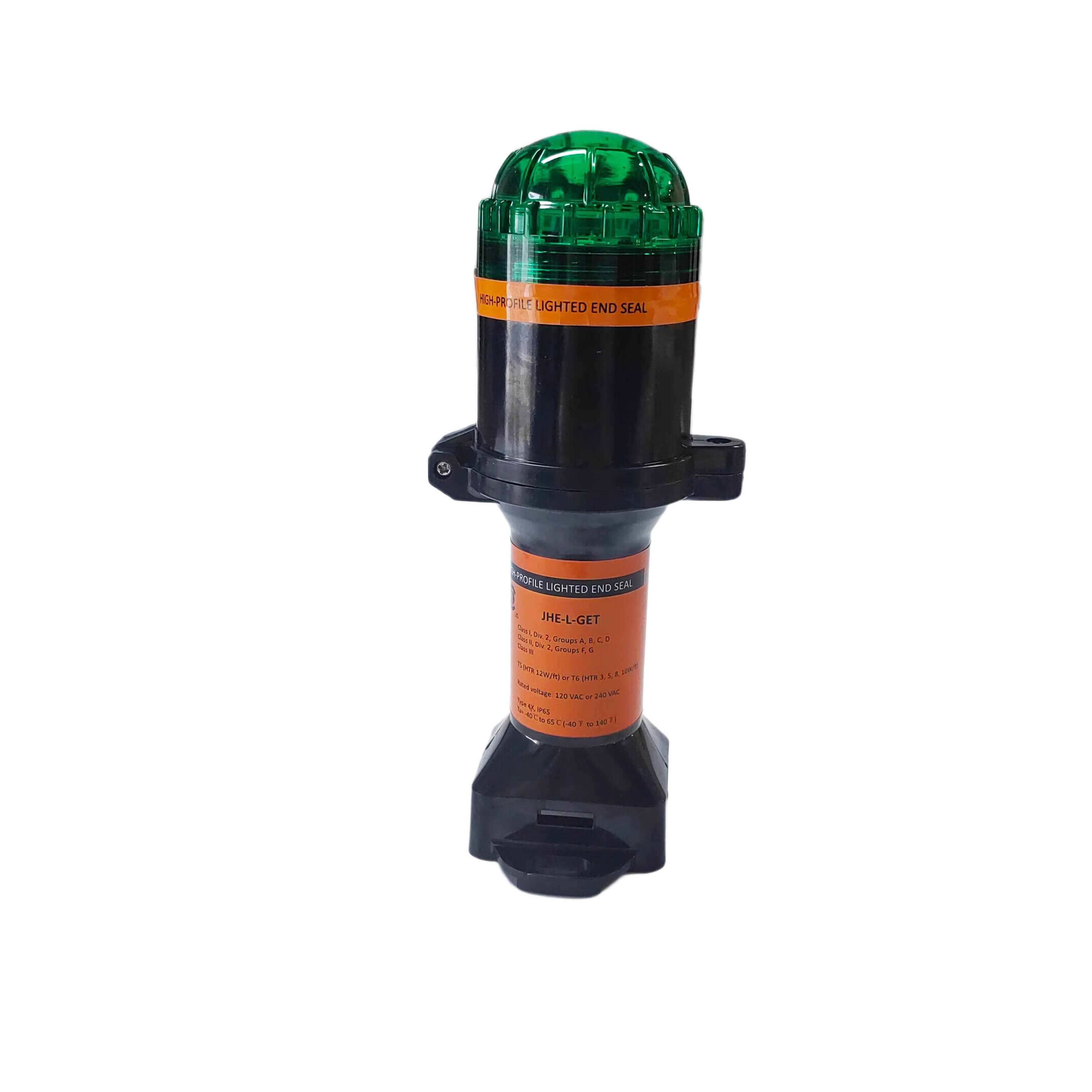

JHE-L-GET End termination kit with LED signal lamp

JHE-L-GET

End termination kit with LED signal lamp for industrial trace heating applications.

Features

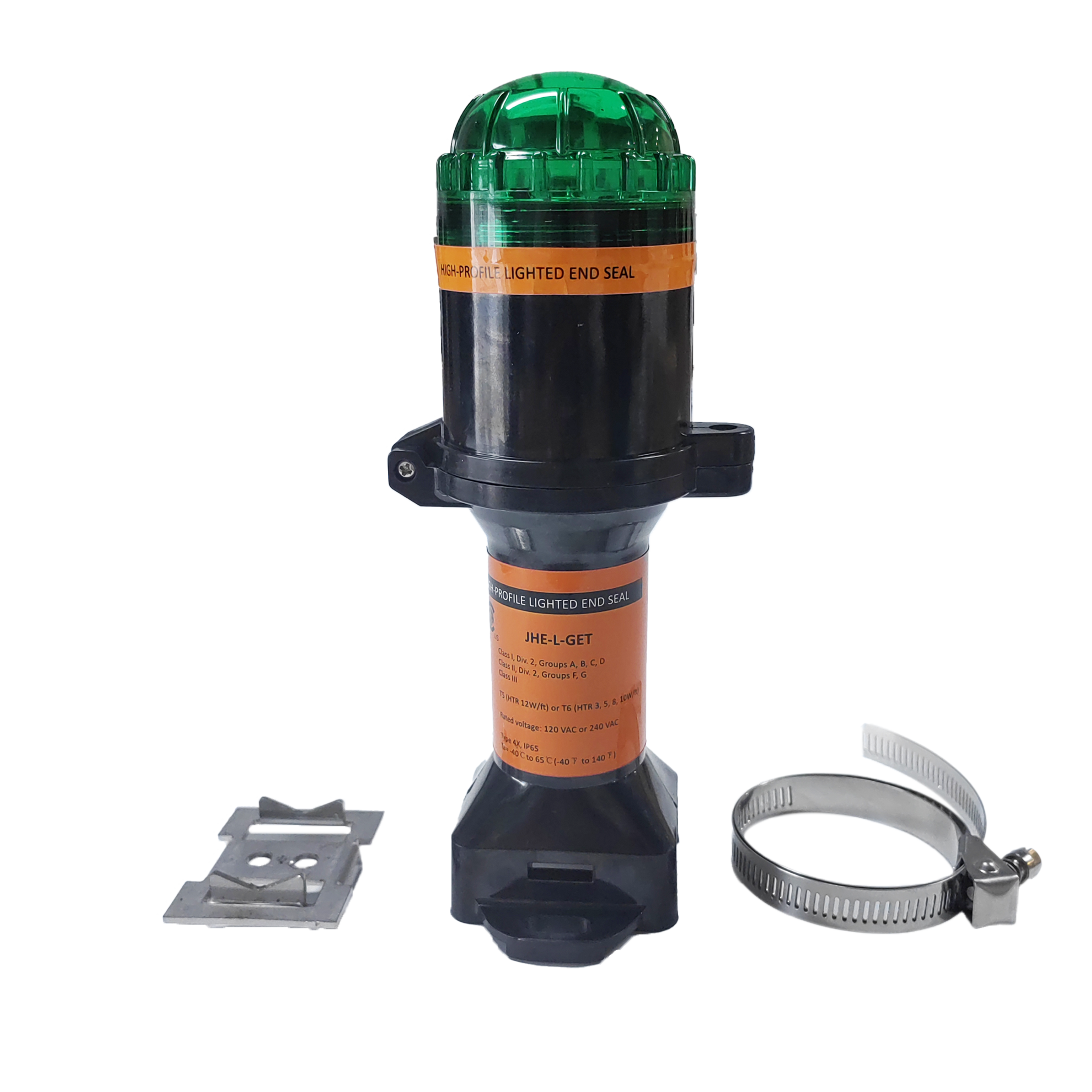

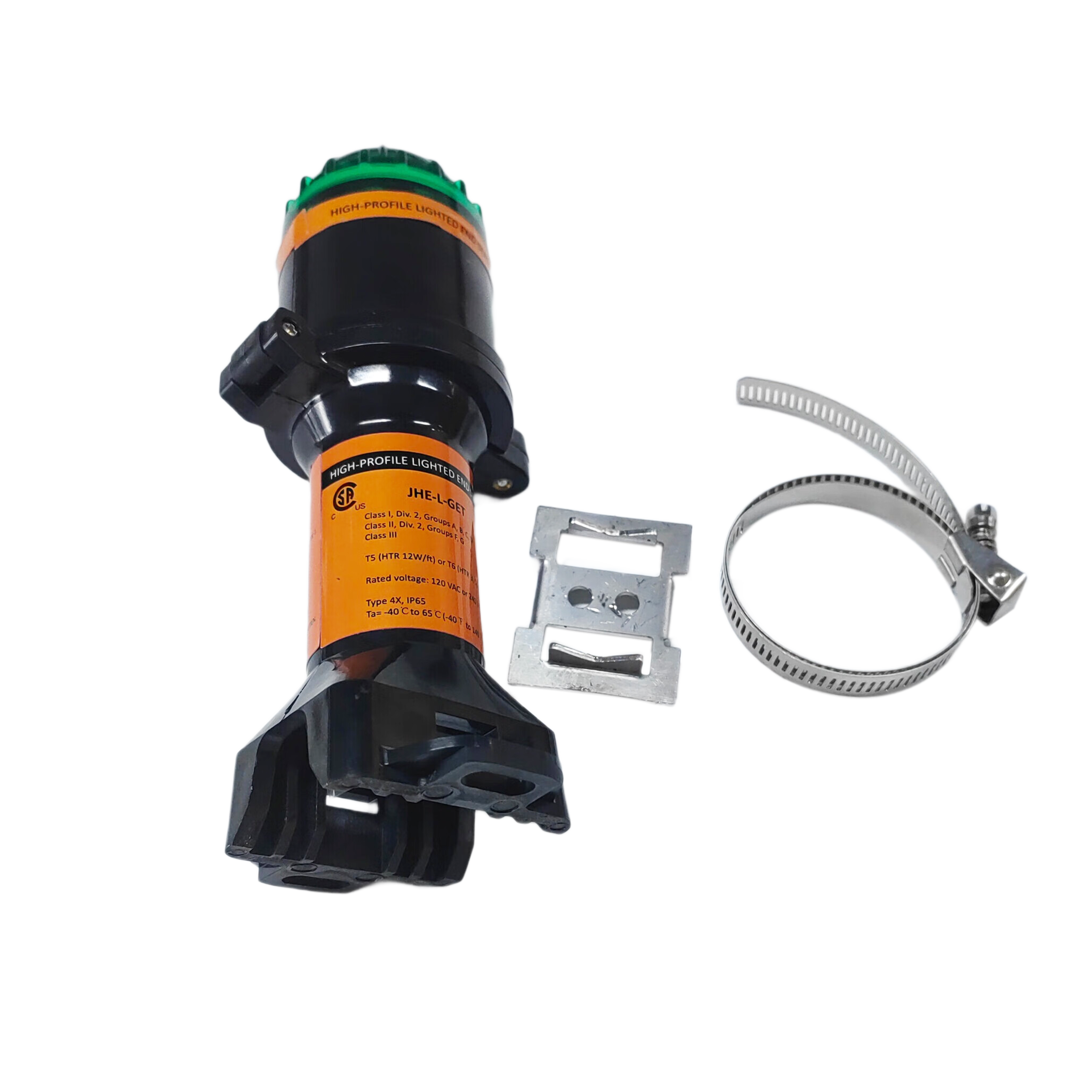

The JHE-L-GET is an end termination kit with LED signal lamp. It is designed and manufactured to meet all relevant standards for industrial trace heating cable system in hazardous locations such as petrochemical plant, gas plant, ship and off-shore facilities. It consists of an Ex certified plastic termination enclosure and all necessary parts together with Ex d signal lamp assembly. It has a specially 'flip cover locks' technology for easy and time-saving connection with  self-regulating heating cables on various sites.

Use

Monitoring the performance of industrial trace heating circuits such as freeze protection or

temperature maintenance of vessel, tank, chemical feeding or transportation pipelines.

Non hazardous and hazardous location.

Specification

Protection type : Ex db eb IIC T6...T3 Gb Electrical rating : 250 Vac/10mA max.

Color: Green(250nm) / other colors on request Ambient temperature : -50℃ to +60℃

Temperature class T6 (85°C) when used with DBRZBR

T4(135C) with GBR

T3 (200℃) with CGBR

Enclosure service temp. : -50℃ to +100℃

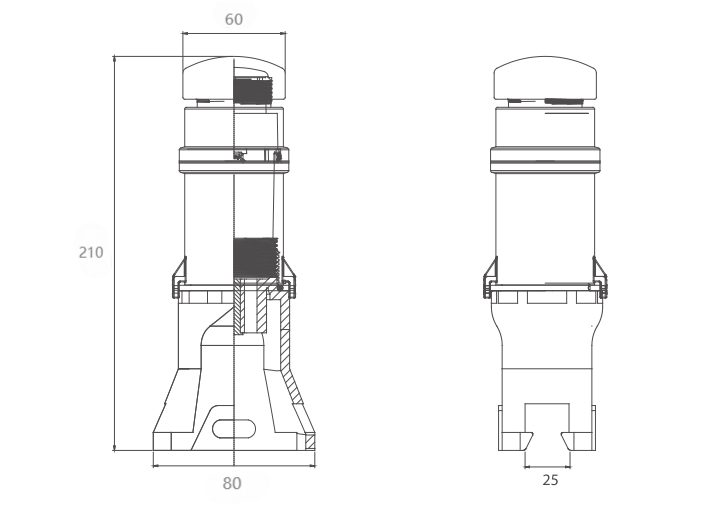

Product dimension : 60mmx210mm

Construingmaterials Lamp cover :PC(transparent)

Main housing : glassfibre-reinforced nylon Pipe-mount : PPS

O-rings and grommets : silicone rubber

Ingress protection : IP66( when assembled with heating cables) Impact resistance :7 Joules Weather-proof:Yes Approval :EX, CE
