Self-regulating electric heating composite pipe bundle

Self-regulating electric heating composite pipe bundle

Applicable to antifreeze, lower process temperature maintenance or higher process temperature maintenance of metal and non-metal pipelines.

[email protected]

WhatsApp:17816879390

Send Inquiry

Product Description

Self-regulating electric heating composite pipe bundle

Self-regulating electric heating composite pipe bundle
Applicable to antifreeze, lower process temperature maintenance or higher process temperature maintenance of metal and non-metal pipelines.

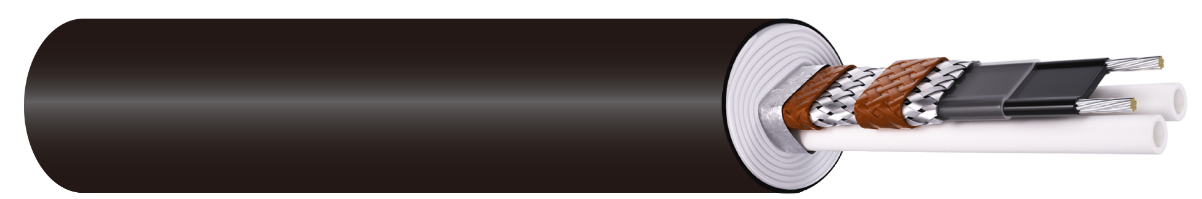

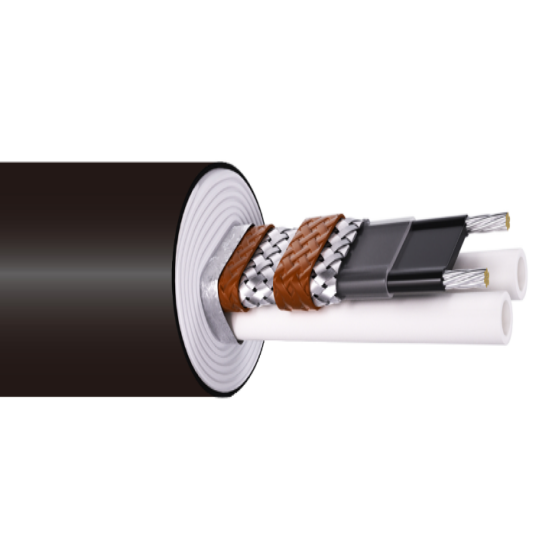

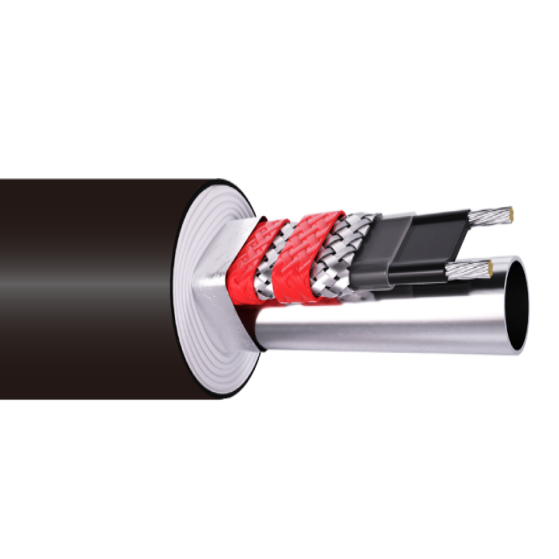

Structure

1 Process pipeline
2 Heat reflective layer
3 Moisture-proof glass wool insulation layer
4 Polymer jacket
5 Tinned copper busbar
6 PTC semiconductor material
7 Flame-retardant polyolefin insulation layer
8 Tinned copper wire/aluminum-magnesium alloy wire braided layer
9 Flame-retardant polyolefin material (suitable for inorganic chemical environment)
Optional parts
10 Fluoropolymer material (suitable for organic chemical environment)

Product performance
Self-regulation
Can be cut to any length
Can be used in explosive hazardous environments
Technical parameters
Rated power: 10, 15, 25, 35, 40, 45, 50, 60,70W/m@10℃
Working voltage: AC220V
Pipeline temperature control range: 5-180℃
Maximum maintenance temperature: 65℃, 85℃, 110℃, 135℃, 150℃, 180℃
Maximum exposure temperature during power failure: 85℃, 120℃, 135℃, 165℃, 200℃, 250℃
Temperature group: T5, T4, T3

Technical indicators:

1. Product specifications: 38mm-70mm

2. Minimum curvature radius: 6 times the diameter

3. Maximum continuous length: 100m

4. Minimum fixed distance: 5m in vertical direction, 2m in horizontal direction

5. Temperature range: 5℃-180℃

Product introduction:

The heating belt can automatically adjust and limit the power output of the heating belt. The benefit of the self-regulating feature is that it eliminates the possibility of burning itself due to excessive heating of the heating belt, and also reduces the possibility of overheating of pipelines or equipment. Its length can be cut arbitrarily as needed.

The electric heating composite pipe bundle of the self-regulating heating belt is suitable for antifreeze, lower process temperature maintenance or higher process temperature maintenance of metal and non-metal pipelines. The product has passed the explosion-proof certification such as CCC and can be used safely in explosion-hazardous places. The fluoropolymer outer sheath has the characteristics of corrosion resistance and chemical corrosion resistance, which can meet the needs of different use environments.

Self-regulating electric heating composite pipe bundle
